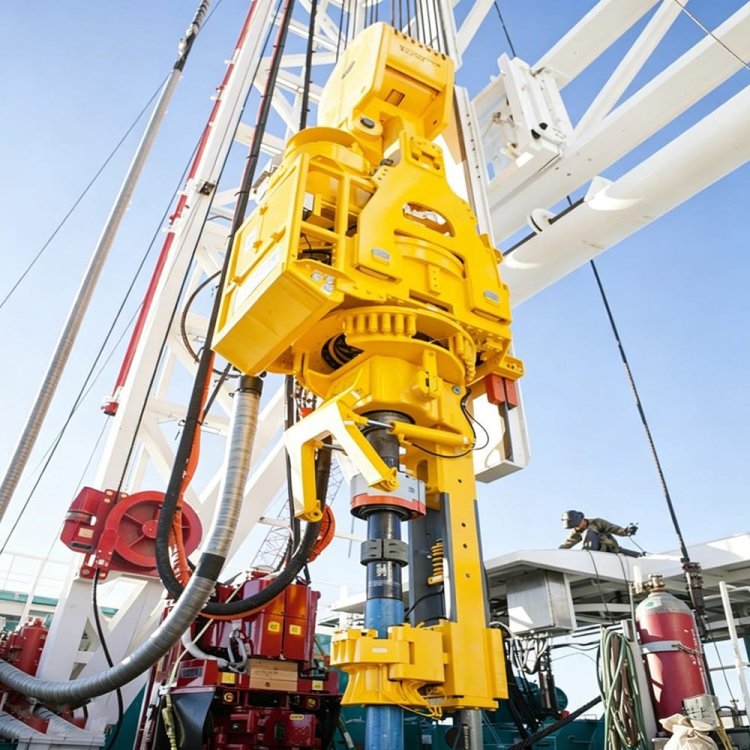

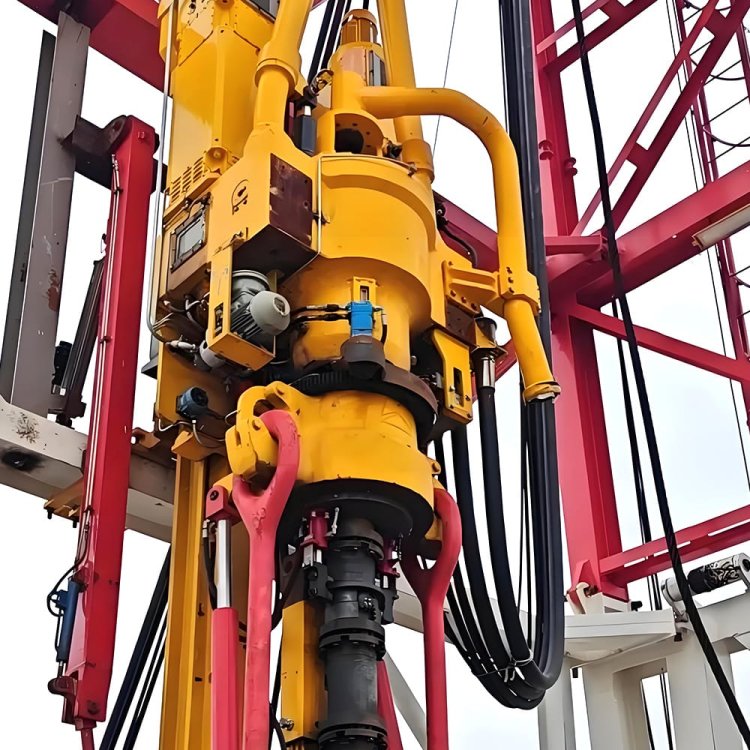

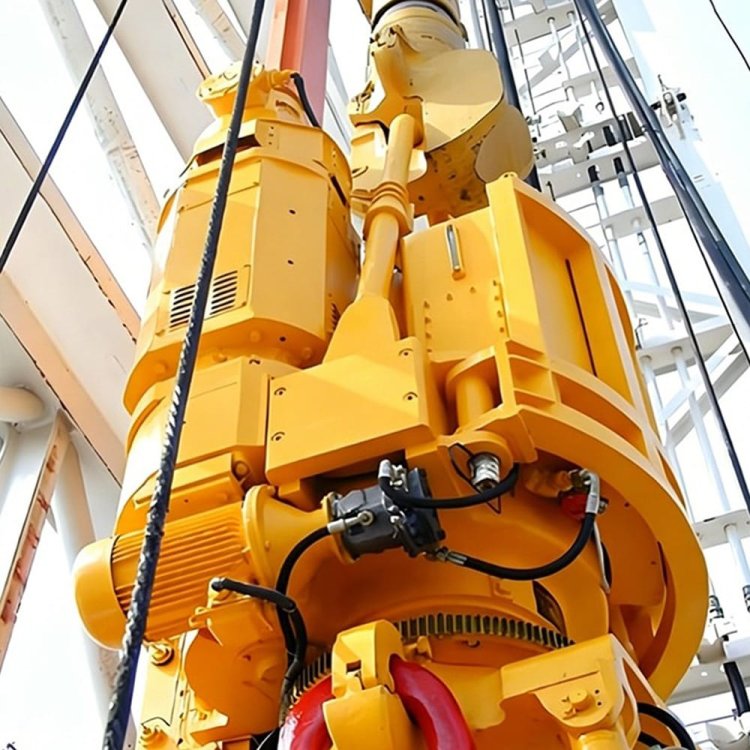

Top Drive

Key Features

1. 350-ton rated load capacity, rated load 3150KN, suitable for 5000m medium-deep well drilling; max break-out torque 72KN·m with powerful pipe handling performance for complex formations

2. 450KW AC VFD main motor matched with ABB VFD control system, 0~180r/min stepless speed regulation, precise & controllable torque output with energy saving

3. Dual IBOP safety protection system: remote upper IBOP + manual lower IBOP, withstand 70MPa high pressure with high-level well control safety

4. Patented foldable guide beam system with auto lock & release structure, no heavy auxiliary equipment required for assembly, fast installation and high operation safety

5. World-renowned top brand core hydraulic & electrical components: Wandfluh valve block, Yuken hydraulic pump, ABB drive motor, Siemens PLC, low failure rate

6. Integrated hydraulic backup tong, clamping range 87–216mm OD, compatible with standard to large-size drill pipes; wear-resistant tong dies and stable make-up & break-out torque

7. Wide temperature adaptability, continuous stable operation under -35℃ extreme cold to 55℃ high temperature desert & Gobi environments

8. Large φ75mm ID mud channel, rated circulation pressure 35MPa, smooth mud flow for good hole cleaning and less pipe sticking

9. Independent VFD electric control house + dedicated driller’s panel, intuitive human-machine interaction, centralized remote control to reduce operation risks for rig floor workers

10. Complete standard supporting accessories: 350ton 132-inch elevator links, full set of hydraulic & electrical pipelines, original spare parts for quick commissioning after delivery

11. Standard three-set packaging: 20ft open-top containers + separate split wooden case, reliable protection for sea & land transportation with low transit damage

12. Manufacturer provides 10-day hands-on engineer training at Qiqihar production base covering operation, maintenance and troubleshooting to lower on-site maintenance threshold

Technical Specifications

Working Principle

The DQ50BQ-JH top drive consists of five coordinated core units: power drive module, hydraulic actuation module, electrical control module, drilling circulation & well control module, guide beam moving module.

Power Output: 600V AC power enters the VFD control house. The ABB frequency converter adjusts output frequency to drive the 450KW AC main motor. Torque is amplified by reduction box to drive the main shaft directly, realizing stepless drilling torque output from 0 to 180r/min.

Drill String Drive & Mud Circulation: The hollow main shaft allows drilling fluid to flow through the gooseneck into the central φ75mm channel and down to drill string. Motor torque is transmitted through the main shaft to the lower saver sub and drill string to perform rotary drilling and mud circulation simultaneously.

Auxiliary Hydraulic Operation: Yuken hydraulic pump matched with Wandfluh integrated valve block supplies two pressure oil circuits of 35MPa for main hydraulic system and 16MPa for auxiliary hydraulic system. It drives backup tong to clamp drill pipes for make-up & break-out, controls elevator link tilt, guide beam auto locking and IBOP opening/closing.

Well Control Protection Logic: During tripping or well control emergencies, remote upper IBOP and manual lower IBOP form double sealing to block the inner string passage and prevent high-pressure formation fluid from flowing upward for rapid well control treatment.

Unit Movement & Guidance: The top drive trolley is mounted on patented foldable guide beam and slides up and down with traveling block hook. The auto locking structure fixes the unit and counteracts drill string reaction torque to avoid top drive deflection.

Centralized Control: Signals from driller’s panel are sent to Siemens PLC cabinet. It collects real-time data including rotary speed, torque, hydraulic pressure, temperature and IBOP status, triggers automatic alarms for faults and realizes full-process intelligent monitoring.

Applications

1. Onshore Oil & Gas Drilling Industry

Onshore conventional oil & gas medium-deep exploration & development wells within 5000m

Drilling operations for shale oil, shale gas horizontal wells and extended reach directional wells

Oil & gas exploration projects in Gobi, desert and frigid mountainous areas

Retrofit of old drilling rigs to replace traditional rotary table drilling systems

Deep drilling projects for coalbed methane and geothermal resources

2. Small Offshore Drilling Projects

Medium-shallow well operations on small offshore jack-up drilling platforms

Oil & gas exploration drilling on tidal flats and land-sea transition zones

3. Engineering Geology & Resource Exploration

Deep core drilling for geological scientific exploration

Deep well drilling for underground energy storage and geothermal projects

Applicable Rig Scenarios

Compatible with 350-ton onshore drilling rigs and medium & small offshore drilling platforms. It fits all drilling conditions adopting standard API drill pipes with OD 87–216mm, and handles vertical wells, directional wells, horizontal wells and drilling in complex sticky formations.

FAQ

Q: What is the rated load tonnage and max drilling depth of DQ50BQ-JH top drive?

A: The rated load is 350 ton (3150KN). With standard Φ114mm drill pipe, its rated drilling depth reaches 5000m to meet medium & deep well drilling demands.

Q: What drive mode does this 350-ton top drive adopt and what’s the motor power?

A: It adopts AC VFD drive. The continuous rated power of main motor is 450KW (600HP) with matched ABB VFD control system for stable speed regulation.

Q: What pressure can the supporting IBOPs withstand? Are there differences between upper and lower IBOP operation modes?

A: Both upper and lower IBOPs are 6 5/8″API REG with 70MPa pressure resistance. The upper IBOP is remote controlled while the lower one is manually operated, realizing dual well control protection.

Q: What range of drill pipe OD can the backup tong clamp?

A: The backup tong fits drill pipes with OD from 87mm to 216mm, covering most common drill pipe specifications on site.

Q: What standard components are included in the full set of top drive supply scope?

A: Top drive main body, VFD electric control house, foldable guide beam, driller’s panel, full set of cables & hydraulic hoses, 350ton elevator links, backup tong, IBOP assembly and full set of original spare parts.

Q: What brands are adopted for hydraulic valve block and hydraulic pump of the hydraulic system?

A: Wandfluh hydraulic valve block, Yuken hydraulic pump and ABB hydraulic drive motor are used.

Q: Can the equipment work under sub-zero low temperature environment?

A: Standard operating temperature range is -35℃~55℃. It can be directly applied in frigid mining areas of Northeast and Northwest China without extra modification.

Q: What is the ID of main shaft mud channel and maximum circulation pressure?

A: The mud channel ID is φ75mm and rated mud circulation pressure is 35MPa, suitable for high-pressure drilling fluid circulation conditions.

Q: What are the continuous drilling torque and max break-out torque of the top drive?

A: Continuous drilling torque is 48KN・m and maximum break-out torque is 72KN・m, providing stronger performance for stuck pipe back reaming.

Q: What structure is the guide beam? Is installation complicated?

A: It adopts self-owned patented foldable guide beam with auto lock & release mechanism. No heavy tooling is required for fast assembly and higher safety.

Q: Does the manufacturer provide training service? What is the training location and duration?

A: 10-day hands-on training for 2 engineers at Qiqihar production base is provided for each set of top drive. The manufacturer covers accommodation and local transportation during training, while the buyer bears international travel expenses of trainees.

Q: What packaging is adopted for the whole equipment and what is the transit weight?

A: 2 sets of 20ft open-top containers (15 tons per container) plus 1 split wooden case (7 tons). Split packaging facilitates sea and land combined transportation.

Q: What brands are the PLC and frequency converter of electric control system?

A: The frequency converter is ABB and PLC control cabinet is Siemens, featuring stable control and low failure rate.

Q: What is the self-weight of top drive main body and standard working height?

A: The main body weight is 10.7 tons and standard working height is 5.6 meters.

Q: Can power supply voltage and frequency be customized?

A: Standard power supply is 600VAC/50Hz, and 60Hz can be customized to fit power grids of overseas drilling projects.

Q: What accessories are included in the random spare parts package?

A: Full set of maintenance spare parts including backup tong dies, washing pipe assembly, saver sub, complete hydraulic seals, electrical wearing parts and pipeline connectors.

Q: What core advantages does top drive have compared with conventional rotary table drilling?

A: Rotary reaming can be performed anytime to avoid pipe sticking during tripping; stand drilling improves efficiency by 20%-30%; dual IBOP ensures higher well control safety; less manual operation on rig floor to reduce safety accidents.

Q: What types of drilling rigs is this 350-ton top drive compatible with?

A: It fits 350-ton onshore oil & gas rigs and small offshore jack-up platforms, applicable for vertical wells, directional wells, horizontal wells, shale wells and various complex well construction.
