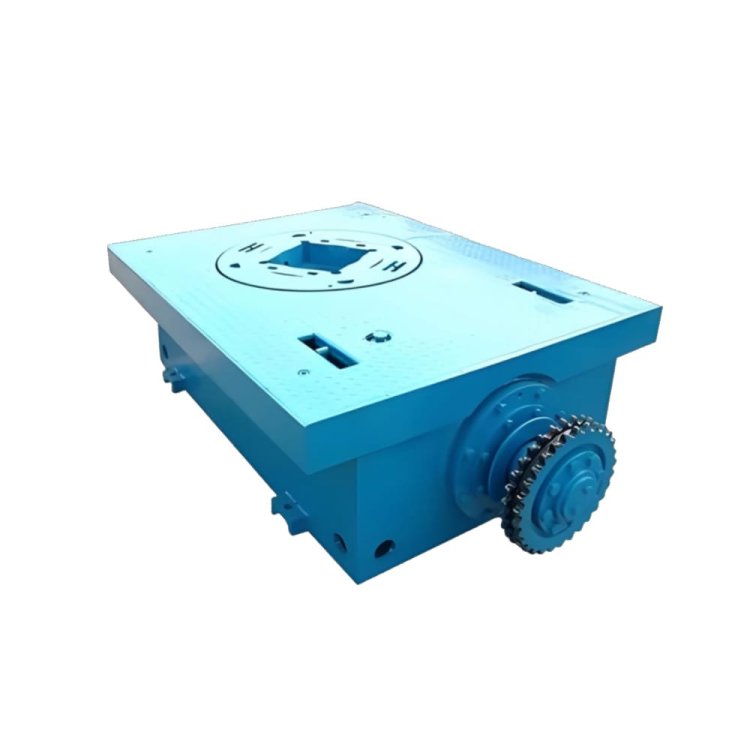

Rotary Table

Key Features

1.The main gear and pinion are forged from high-strength alloy steel, with good wear and impact resistance and longer service life under heavy-load working conditions.

2.Two master bushing solutions, square drive and pin drive, are available to meet the matching requirements of different drilling rigs.

3.It fits API standard square kelly and hexagonal kelly roller bushings, works with both long and short slips, and boasts strong universality of spare parts.

4.The whole machine adopts full forced lubrication structure, which supplies oil evenly and sufficiently to all friction pairs and reduces gear abrasion.

5.Adopting multi-stage composite sealing design, it effectively blocks mud intrusion and prevents lubricating oil leakage.

6.The full series of ZP175/ZP520/ZP205/ZP275/ZP375/ZP495 covers drilling projects from shallow wells to deep wells.

7.It features large rated static load and stable working torque output, capable of continuous drilling under high load.

8.The overall design, processing and inspection are carried out in strict accordance with API Spec 7K industrial specifications to ensure safe and compliant operation.

Technical Specifications

Product Structure

Box Base,Alloy Steel Gear & Pinion Transmission Pair,Rotary Bushing Assembly,Forced Centralized Lubrication System,Multi-stage Composite Sealing Unit,Drive Sprocket & Auxiliary Parts

Applications

Onshore crude oil & natural gas drilling
Deep well, ultra-deep well, directional & horizontal well projects
Unconventional energy exploitation: shale gas, coalbed methane
Geothermal energy well construction
Mineral resource exploration drilling
Supporting for conventional mechanical rigs & integrated electric drilling rigs
Supporting projects for oilfield service companies & global drilling contractors

FAQ

1. Q: What standard does your rotary table comply with?

A: All our rotary tables are fully manufactured and inspected in accordance with API Spec 7K international standard, with complete test certificates available.

2. Q: Can I choose square drive or pin drive master bushing freely?

A: Yes, two types of master bushings are optional for all models, compatible with API standard square kelly and hex kelly roller bushing, long and short slips can be matched.

3. Q: Are the pulley and bearing interchangeable with matching traveling block?

A: The gear assembly and bearing parts are designed with general interchangeability, spare parts can be shared with matched traveling block to reduce inventory cost.

4. Q: How to maintain the lubrication system of rotary table?

A: Adopt centralized forced lubrication structure, regularly inject special gear oil through the oil filling port; check oil level and sealing condition every week to avoid oil leakage and mud intrusion.

5. Q: Which model should I choose for deep well drilling?

A: For medium-deep wells, ZP275 / ZP375 are recommended; for ultra-deep wells and offshore rigs, ZP495 with larger opening, higher dead load and torque is the optimal choice.

6. Q: Can you customize the overall dimension and lifting lugs?

A: Standard sizes follow the parameter table, customized overall dimension, lifting lugs and top drive mounting ear boards are acceptable according to customers’ rig drawings.

7. Q: What’s the warranty period of your rotary table?

A: We provide 12 months warranty after shipment or 2000 working hours (whichever comes first), free replacement for damaged parts caused by manufacturing defects.
