Storage Equipment

Key Features

Integrated all-in-one design integrating gas storage, impurity separation, pressure regulation and pipeline transmission, greatly shortening on-site installation cycle and cutting construction cost

High-strength pressure-resistant carbon steel structure with industry-standard yellow gas pipelines and complete safety relief systems to avoid overpressure risks

Built-in filter separators and buffer tanks effectively remove water, sediment and solid particles to purify natural gas and stabilize pipeline pressure

Full compliance with petroleum & gas industry safety specifications, stable performance under medium and high pressure working conditions

Comprehensive after-sales support: 12-month standard warranty, 24/7 global technical assistance, on-site & remote operation and maintenance training plus full spare parts supply

Wide compatibility, perfectly matching gas gate stations, long-distance transmission stations, LNG reserve bases and oilfield gathering process systems

Technical Specifications

Product Structure

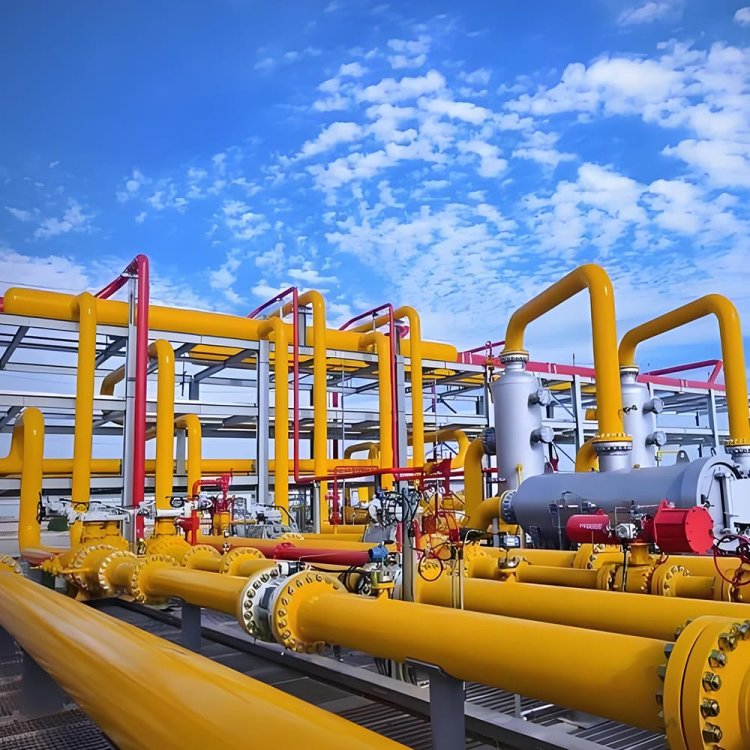

This set of storage equipment adopts an integrated skid-mounted overall structure, which is mainly divided into four core modules: process pipeline assembly, separation & storage tank assembly, safety control component assembly and load-bearing support frame.

1，Process pipeline assembly: High-pressure yellow gas delivery pipelines, red safety vent pipelines, matched alloy steel flanges and connecting elbows are arranged in layers, serving as the main channel for gas transportation and distribution.

2，Separation & storage tank assembly: It includes horizontal buffer tanks and filter separators, which are the core storage and purification units for temporary gas storage and removal of moisture, sediment and solid impurities.

3，Safety control component assembly: Composed of pressure regulating valves, emergency relief valves, shut-off valves and pressure monitoring instruments, it realizes automatic pressure stabilization and overpressure protection during operation.

4，Load-bearing support frame: Integral carbon steel pipe support and operation platform with anti-corrosion coating, which bears all equipment and facilitates daily inspection and maintenance.

All modules are pre-installed on the skid frame in factory, realizing integrated delivery to greatly simplify on-site construction work.

Compatible Brands

Cameron, Fisher, Honeywell, Emerson，Schlumberger, Parker, Endress+Hauser, Siemens

Applications

Urban gas transmission & distribution industry: City gas gate stations, regional natural gas distribution stations, residential and commercial gas supply projects

Oil & gas upstream exploitation industry: Onshore oil and gas field gathering stations, wellhead surface processing equipment, gas storage buffer stations

LNG & energy reserve industry: LNG receiving stations, natural gas peak shaving storage bases, underground gas storage surface process systems

Industrial manufacturing industry: Centralized gas supply for chemical plants, steel mills, power plants and heavy processing enterprises

Long-distance pipeline transportation industry: Main line pressure regulating stations, pipeline impurity separation and buffering stations along gas transmission pipelines

FAQ

Q1: What is the maximum working pressure of this storage equipment?

A1: Our equipment supports design pressure ranging from 1.6MPa to 10.0MPa, customizable to match your on-site medium-high pressure gas transmission requirements.

Q2: What kind of medium can the device handle?

A2: It is mainly designed for natural gas and pipeline methane gas, and can be adjusted to process other clean industrial fuel gas upon request.

Q3: How long is the product warranty period?

A3: We offer a standard 12-month global warranty. Lifelong spare parts supply and paid maintenance services are available after the warranty expires.

Q4: Can you provide operation and maintenance training?

A4: Yes. We support both on-site on-location training and remote online training for equipment operation, routine inspection and fault troubleshooting.

Q5: Is the equipment compatible with international brand valves and instruments?

A5: All connecting structures follow API and ASME standards, seamlessly matching mainstream brands including Emerson, Fisher, Schlumberger, Jereh and more without modification.

Q6: Can the size and flow rate be customized?

A6: Customization is fully available. We adjust pipeline diameter, daily gas handling capacity and tank volume according to customers’ actual station construction parameters.

Q7: What anti-corrosion treatment is adopted for outdoor installation?

A7: The frame and pipelines are coated with heavy-duty epoxy anticorrosive paint, adapting to long-term outdoor open-air working environments with temperature range of -20℃ to 60℃.

How Storage Equipment Works

Raw natural gas transported from upstream pipelines first flows into the built-in filter separator of the integrated storage equipment. Solid sediment, free water and impurity particles mixed in the gas will be intercepted and separated by the stainless steel filter cartridge inside the separator, realizing preliminary gas purification.

After purification, the clean gas enters the horizontal buffer storage tank. The tank acts as a buffer storage unit to balance unstable pressure fluctuations from the front-end pipeline, store a certain volume of gas temporarily, and stabilize the overall pipeline operating pressure.

Subsequently, the gas flows through the yellow high-pressure process pipeline manifold. Equipped with matched pressure regulating valves, monitoring gauges and emergency relief safety assemblies, the system automatically adjusts gas delivery pressure and flow rate according to downstream demand. Once the pipeline pressure exceeds the preset safety threshold, the red vent pipeline and relief valve will automatically release pressure to eliminate overpressure risks.

Finally, the treated stable and clean natural gas is evenly distributed and delivered to downstream gate stations, industrial production lines or storage facilities to complete the whole process of purification, storage, pressure stabilization and transportation.
